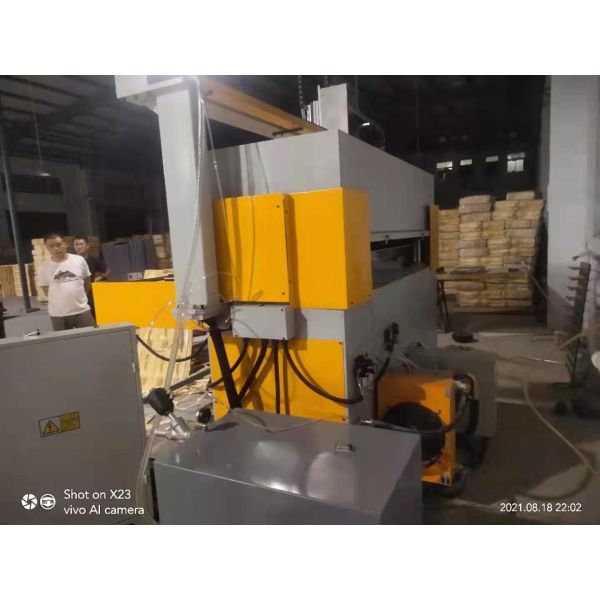

"JIangsu" Automatic Hydraulic Die Cutting Machine
Application:
This machine is suitable for all kinds of non-metal sheet metal
materials to be cut or half-cut.
For example, plastic, pearl cotton packaging, rubber, printing, and
other industries.
Parameter:
Model number: XCLP3-40
Maximum cutting force:40T
Upper-pressure plate to table distance:50-200 ㎜
The cutting area:1600×610 ㎜/1400×610 ㎜
Main motor power:3KW
Machine weight:3000KG/3000KG
Note: our company can customize the special specifications such as cutting
zone, feeding mode (single, bilateral automatic feeding) according
to customer's requirements.
Advantage:
1. PLC programmable control, simple operation, fast and accurate.
2. The main engine adopts double oil cylinder, double crank
automatic balance connecting rod balance and four-column precision
guide mechanism to ensure the cutting depth of each cutting
position is exactly the same.
3. When pressing the pressing plate, it is automatically slow to
cut the cutting, so that there is no size error between the top and
bottom of the cutting material.
4. All sliding parts are lubricated by a hydraulic system, reducing
wear and tear, ensuring the service life and precision of the
machine.
5. The automatic feeding mechanism of the bilateral motor adopts
the frequency conversion buffer system, which can simultaneously
cut the different heights of the cutter to improve the efficiency
of the workby 80%.
6. Can configure the cutting board microdevice, make the cutting
board uniform consumption, cost-saving.
7. It can be equipped with a die clamping device, and it is
convenient and fast to replace the die.
